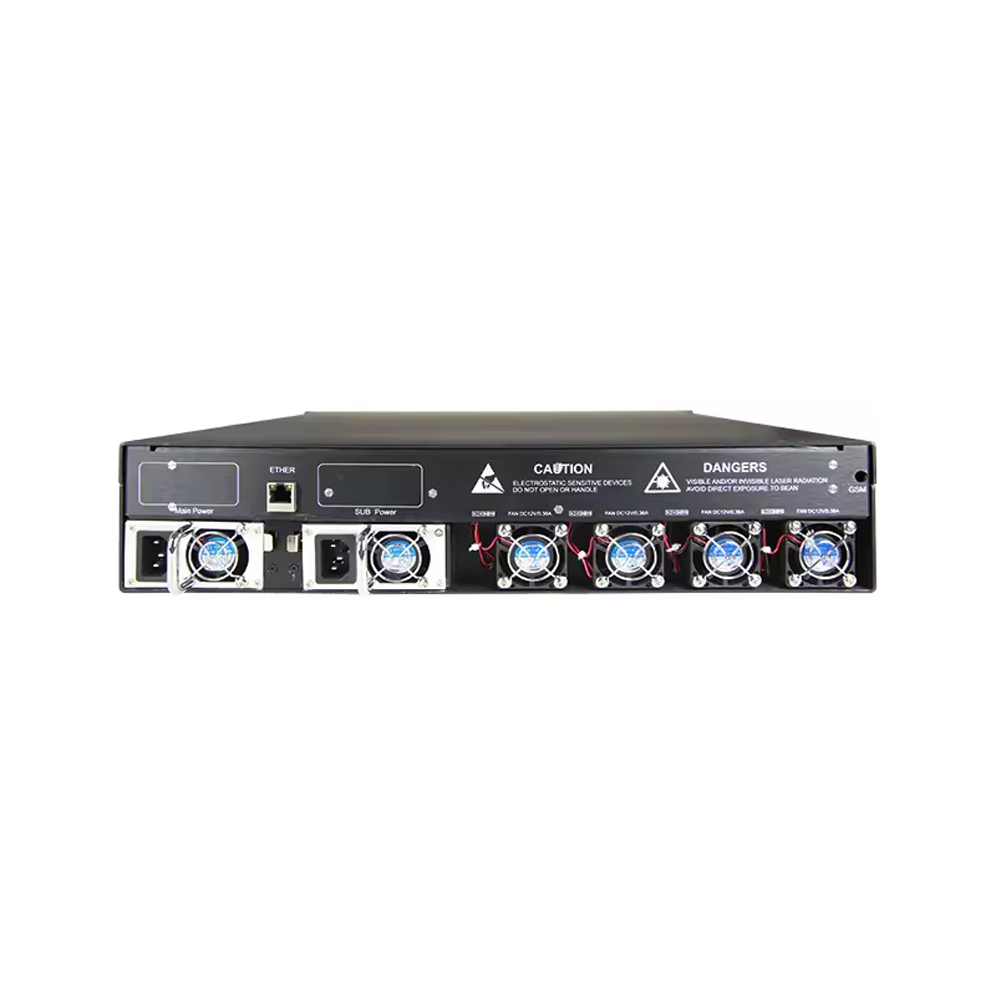

high power multi-output fiber amplifie 32 ports edfa with wdm
Adopt Er-Yb co-doped double-clad fiber technology and low-noise pump laser.
The entire machine adopts a modular design, making it easy to maintain and manage.
The 2U supports a maximum total output of 41dBm and offers adjustable output power, with an adjustable range of +0.5~-4dBm.
Optional functions include optical switch, optical transmitter, and RF monitoring.
high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems. Can achieve single-wavelength transmission of CATV signals or implement single-fiber three-wave transmission design through built-in FWDM. It is an important equipment for building large and medium-sized fiber transmission networks for CATV.
Technical item | Details |
CATV working wavelength | 1535~1565 nm |
PON OLT working wavelength | 1310/1490 nm |
CATV Input power | -5dBm~+10dBm |
Output Optical ports | 32 ports |
Optical connector | SC/APC；SC/PC；LC/APC；LC/PC |
Direct Modulation Transmitter | 1550 nm |
Power Supply Voltage | AC(90V ~ 264V) |
Operating Temperature | -5 - +50 ℃ |
